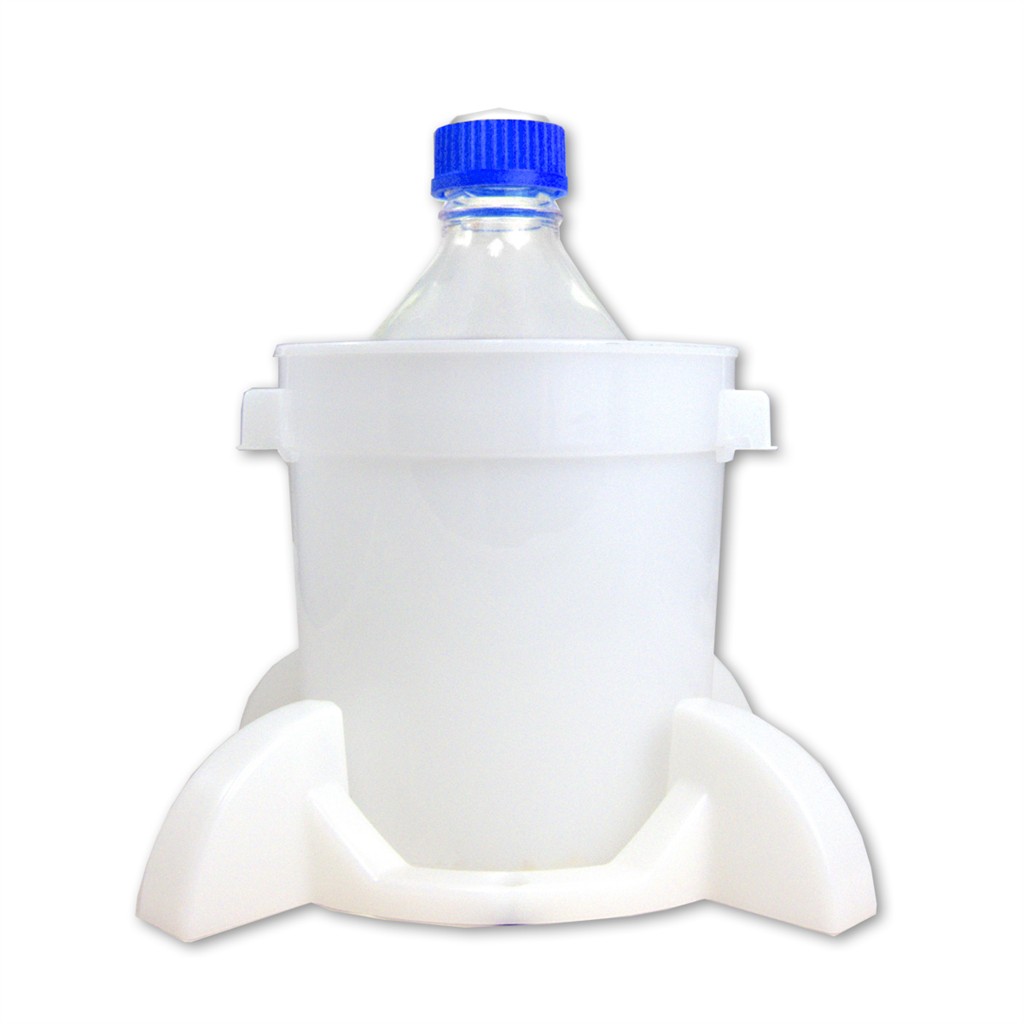

Port Cap Complete System: 2-port, GL45 cap, 2 Lite

Port Cap System includes a borosilicate glass 2 Liter bottle, 45mm Port Cap, and Secondary Container.

Port caps permit multiple waste lines of varying size and type to be connected to the container of your choice. These caps are designed to ensure proper delivery and waste containment of industrial chemicals and solvents. Our closed system reduces harmful emissions which are potentially hazardous to employees and our environment.

Port caps feature 1/4-28 threaded ports in a polypropylene insert, with expanded PTFE gaskets. Each port has a through-hole for 1/8" OD tubing, machined at a 10 degree angle; push tubing through the cap to supply your system. Cap outer is made of either PP or HDPE, depending on the cap type. 1/8" OD supply tubing may also be press-fit into the underside of each cap if needed. Includes plugs for all holes to maintain a closed system when holes are not in use.

This Port Cap Kit includes the following components:

• Glass 2 Liter Media Bottle with GL45 closure, CG-8088-2L
• Port Cap Model WF-GL45-2KIT, WF-GL45-3KIT or WF-GL45-4KIT
• Secondary Container SC-3003 and footed base

Glass Bottle Specifications:

• Borosilicate glass by Corning 1395-2L series
• excellent thermal shock resistance
• Enhanced graduations and marking spots are permanent white enamel
• GL45 screw threads
• Liner-less, autoclavable (140°C max.), polypropylene cap included
• Drip-free polypropylene pour rings included

These heavy duty 2L PYREX® round bottles can be used for storage as well as mixing and sampling. They include a linerless, one-piece autoclavable orange polypropylene plug seal GL45 threaded cap with a drip-free pouring ring. New glass bead indicates full capacity line. Bottles have permanent white enamel graduations and marking spots.
Caution: DO NOT tighten caps immediately after autoclaving as the vacuum resulting from cooling can cause breakage.

Port Cap Specifications:

• Fits 45mm Glass Media Bottles
• features either 2, 3 or 4 female ports, size 1/4-28
• Polypropylene insert
• Polypropylene collar
• includes plugs for unused holes

WARNING: This product can expose you to chemicals including Tetrafluoroethylene, which are known to the State of California to cause cancer.
