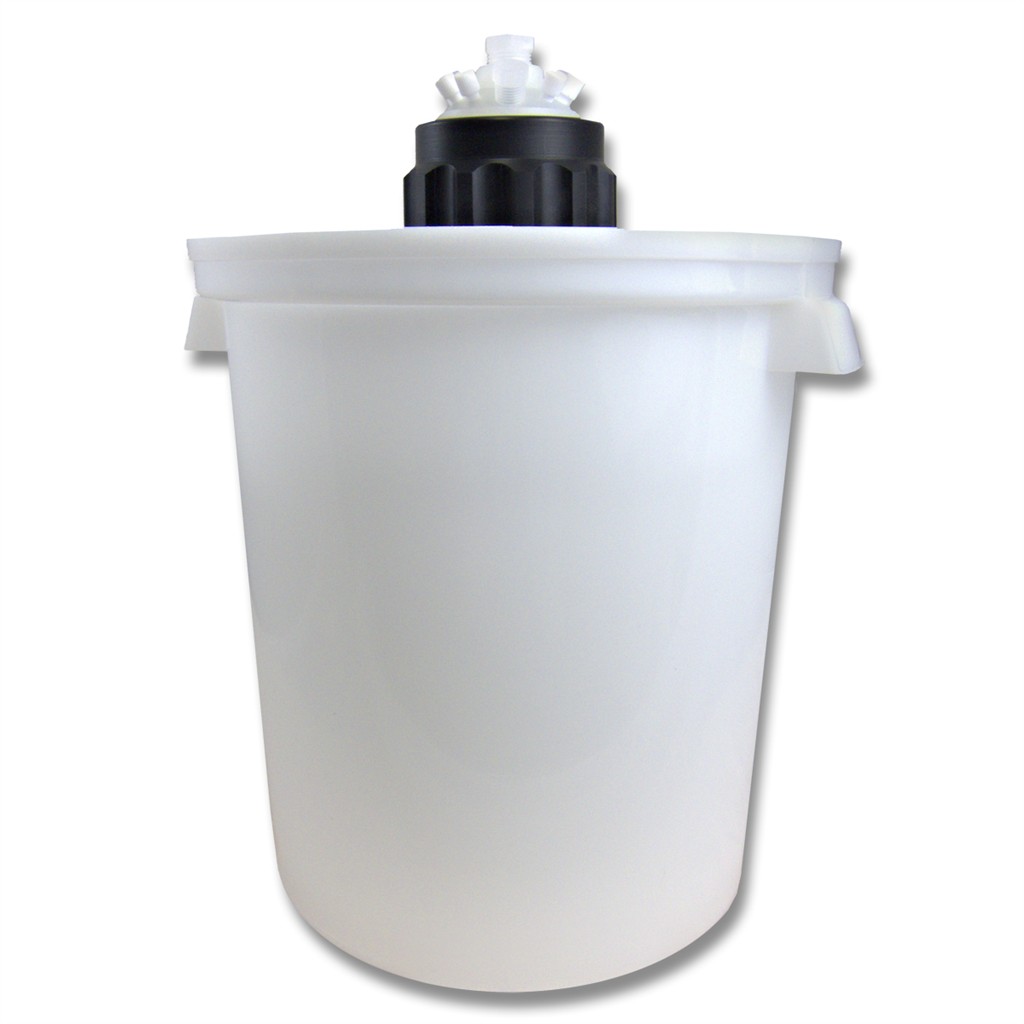

Port Cap Complete System: 10L Carboy, 83B 10-Port

Port Cap System, 10 Liter Carboy, 83B 10-Port Cap, Secondary Container.

Port caps permit multiple waste lines of varying size and type to be connected to the container of your choice. These caps are designed to ensure proper delivery and waste containment of industrial chemicals and solvents. Our closed system reduces harmful emissions which are potentially hazardous to employees and our environment.

Port caps feature 1/4-28 threaded ports in a polypropylene insert, with expanded PTFE gaskets. Each port has a through-hole for 1/8" OD tubing, machined at a 10 degree angle; push tubing through the cap to supply your system. Cap is made of Polypropylene.

Carboy port caps feature larger holes in addition to the small 1/4-28 holes.

This Port Cap Kit includes the following components:

• 10 Liter Nalgene LDPE Carboy EC-20010
• Port Cap Model WF-83B-Kit (includes plugs for all holes, but no tubing adapters. Order adapters based on your tubing size.)
• Secondary Container SC-83B

Carboy features:

• Nalgene LDPE Round Carboys are a good choice for storage and transport of reagents.
• Molded-in shoulder loops and graduations in 1 gallon and 5 Liter increments
• Dimensions: 250mm x 389mm (9.88in x 15.31 in.)
• Molded-in graduations in 5L and 1 gal. increments; graduated "To Contain"
• Leakproof, unlined white polypropylene closure

Port Cap features:

• 83B Manifold Cap may be black or white
• Large-bore insert manifold
• (1) 1/2" NPT holes
• (3) 1/4" NPT holes
• (6) 1/4-28 holes
• Polypropylene with Polypropylene insert
• includes plugs for unused holes

WARNING: This product can expose you to chemicals including Tetrafluoroethylene, which are known to the State of California to cause cancer.
