Port Cap Complete System: 10-port Cap, 5 gal Plast

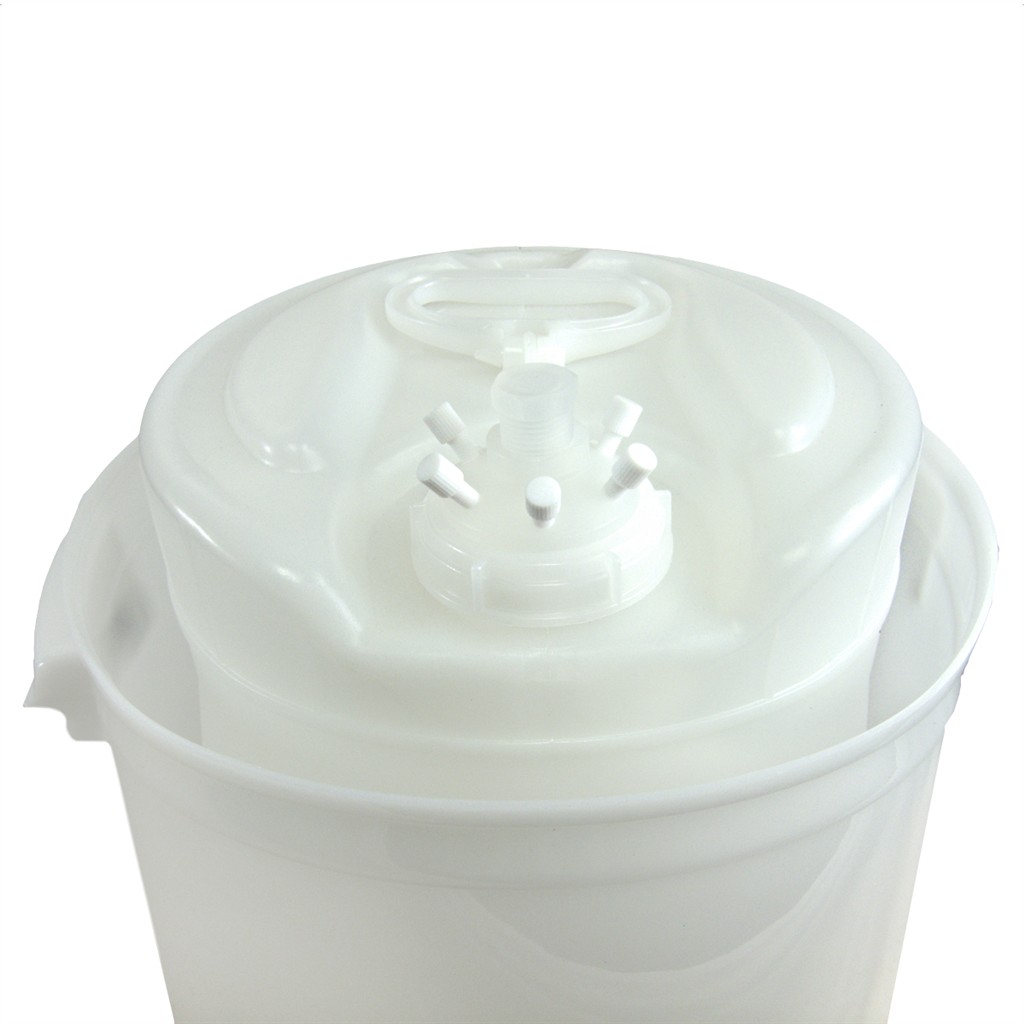

Port Cap System, Plastic 5 Gallon Drum, 70mm 10-Port Cap (Rieke FS-70 NPS, 8TPI), Secondary Container, plugs.

Port caps permit multiple waste lines of varying size and type to be connected to the container of your choice. These caps are designed to ensure proper delivery and waste containment of industrial chemicals and solvents. Our closed system reduces harmful emissions which are potentially hazardous to employees and our environment.

Port caps feature 1/4-28 threaded ports in a polypropylene insert, with expanded PTFE gaskets. Each port has a through-hole for 1/8" OD tubing, machined at a 10 degree angle; push tubing through the cap to supply your system. Cap outer is made of PP with a polypropylene insert.

Carboy port caps feature larger holes in addition to the small 1/4-28 UNF holes. Includes plugs for all holes to maintain a closed system when holes are not in use.

This Port Cap Kit includes the following components:

• Plastic 5 gallon drum EC-20020DRN
• Port Cap Model WF-FS70-KIT (includes plugs for all holes, but no adapters. Choose adapters based on your tubing size)
• Secondary Container SC-20020DR

Carboy features:

• 5 gallon drum, cap size 70mm (FS70 Neck finish)
• Height: 15.25" Diameter: 11.5"
• High density polyethylene
• designed for the secure, dependable shipment and storage of liquid products.
• cylindrical in shape with spout placement in line with the sidewall for maximum removal of product during dispensing.
• swing handle

Port Cap Features:

• 70mm (FS70) 10-ported, Polypropylene Waste Manifold
• (1) 1/2" NPT ports
• (6) 1/4-28 UNF ports
• (3) 1/4" NPT ports
• includes plugs for unused holes

WARNING: This product can expose you to chemicals including Tetrafluoroethylene, which are known to the State of California to cause cancer.
