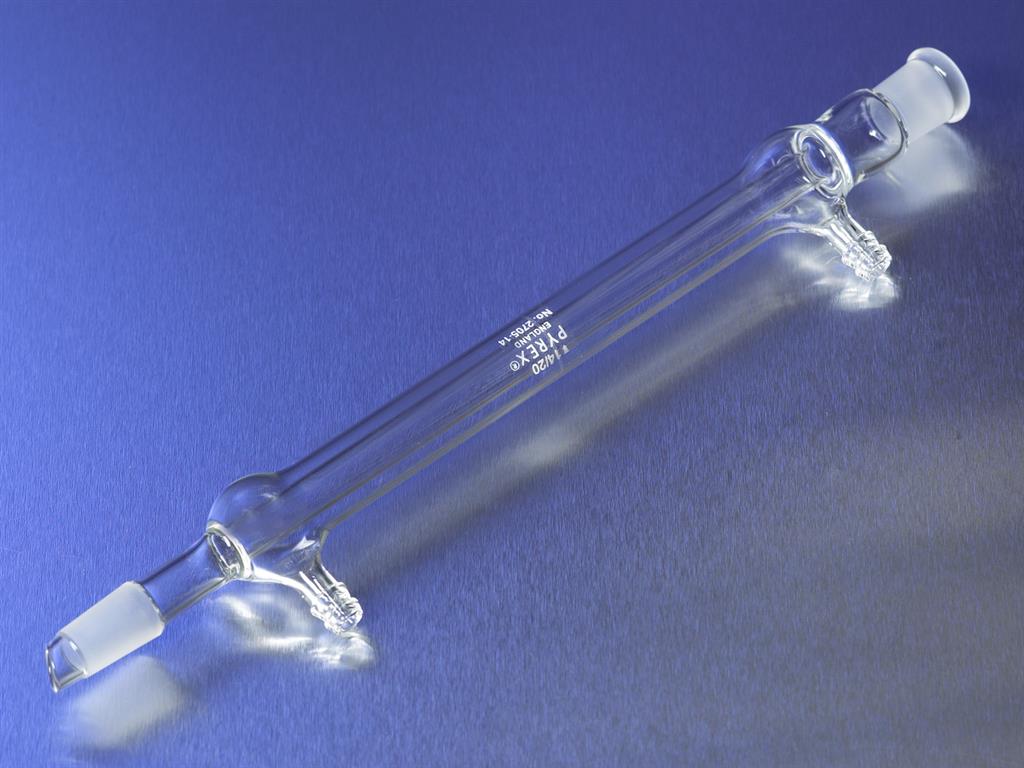

PYREX® West Condensers, Drip Tip, w/ 19/22 Stan Taper Outer and Inner Joints
Item No.
41242925
PYREX® West Condensers, Drip Tip, with 19/22 Standard Taper Outer and Inner Joints These PYREX® West condensers are designed with a 190mm long jacket that has a 19/22 Standard Taper top joint. The bottom has 19/22 Standard Taper inner joint with a drip tip. The tubulations are on the same side to
Description
PYREX® West Condensers, Drip Tip, with 19/22 Standard Taper Outer and Inner Joints
These PYREX® West condensers are designed with a 190mm long jacket that has a 19/22 Standard Taper top joint. The bottom has 19/22 Standard Taper inner joint with a drip tip. The tubulations are on the same side to reduce breakage. The tubulation O.D. is approximately 10mm. This condenser is a replacement part for organic chemistry kit No. 6949E.
Specs:
Condenser Style: West
Height: 283 mm (approx.)
Length: 190 mm (approx.)
O.D.: 18
Standard Taper Bottom Joint: 19/22
Standard Taper Top Joint: 19/22
Tubulation O.D.: 10 mm (approx.)
These PYREX® West condensers are designed with a 190mm long jacket that has a 19/22 Standard Taper top joint. The bottom has 19/22 Standard Taper inner joint with a drip tip. The tubulations are on the same side to reduce breakage. The tubulation O.D. is approximately 10mm. This condenser is a replacement part for organic chemistry kit No. 6949E.
Specs:
Condenser Style: West
Height: 283 mm (approx.)
Length: 190 mm (approx.)
O.D.: 18
Standard Taper Bottom Joint: 19/22
Standard Taper Top Joint: 19/22
Tubulation O.D.: 10 mm (approx.)
Item Info:
| Item Title | PYREX® West Condensers, Drip Tip, w/ 19/22 Stan Ta |
| per Outer and Inner Joints | |
| Category: | Supplies |
| Sales Unit of Measure | CS4 |
| Last Date/Time Modified | 1/30/2025 4:53:53 PM |
