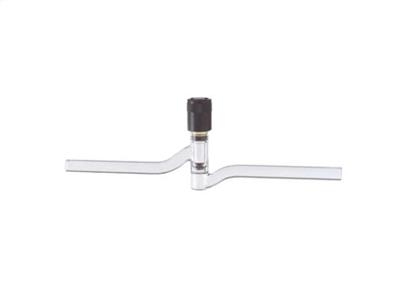

Valve Hi Vac 180 Glass 8

HIGH VACUUM STRAIGHT VALVES WITH TIP O-RINGS AND GLASS PLUG
This valve uses a glass plug (as an alternative to PTFE or CTFE) for applications where the “out-gassing” plug material is undesirable.


• Designed with a precision external thread for fine control
• This valve can be used as a bleed up to 1/2 turn
• Full open position is at 1-1/2 turns
• All plugs are totally interchangeable with other HI-VAC® counterparts
• Supplied with FKM o-rings
• For greater solvent resistance, see FFKM listing under o-rings ,758240
• Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements

Bore Range (mm) : 0-8
Shaft O-Ring Size : 110
Tip O-Ring Size : 108
Stem OD (mm) : 13
Case Qty : 1
