PYREX® 300mm Graham Condensers w/ Top and Bot 24/40 Stan Taper Joints
Item No.
41242919

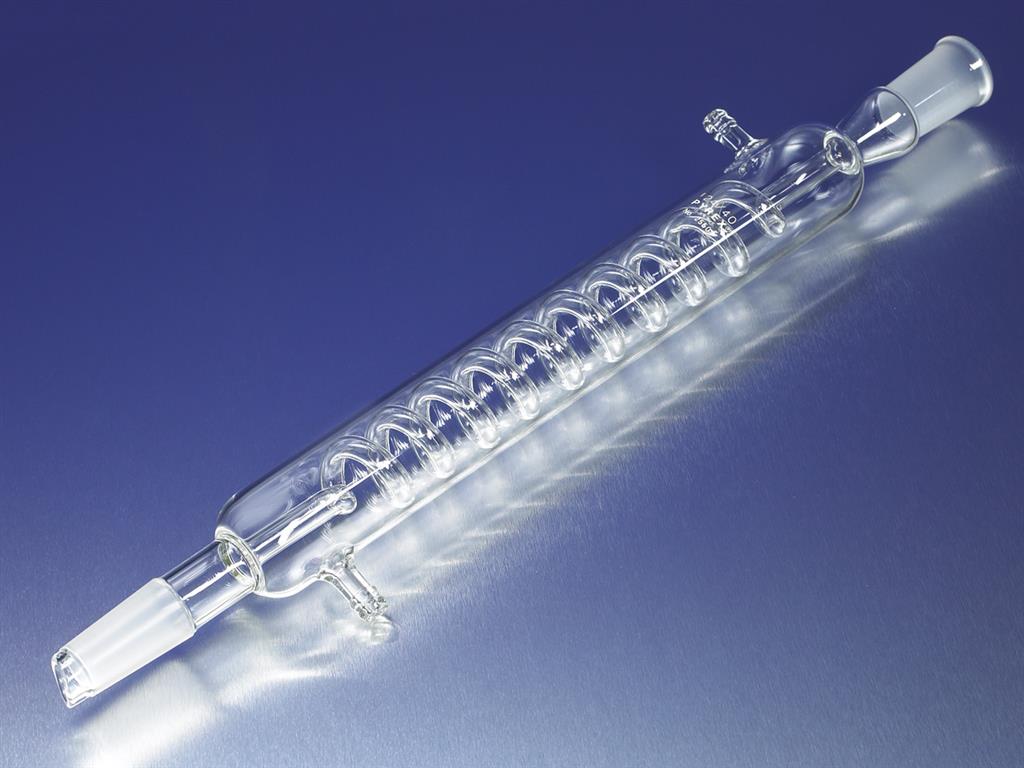

PYREX® 300 mm Graham Condensers with Top and Bottom 24/40 Standard Taper Joints These PYREX® Graham condensers have a high surface area per unit length of the 300mm long jacket with a 24/40 Standard Taper outer joint at the top and a 24/40 Standard Taper inner joint at the bottom with a drip tip.
Description
PYREX® 300 mm Graham Condensers with Top and Bottom 24/40 Standard Taper Joints
These PYREX® Graham condensers have a high surface area per unit length of the 300mm long jacket with a 24/40 Standard Taper outer joint at the top and a 24/40 Standard Taper inner joint at the bottom with a drip tip. They are primarily used in vacuum distillations. Condenser tubulations are approximately 10mm O.D.
Specs:
Condenser Style: Graham
Height: 450 mm (approx.)
Length: 300 mm (approx.)
O.D.: 41
Standard Taper Bottom Joint: 24/40
Standard Taper Top Joint: 24/40
Tubulation O.D.: 10 mm (approx.)
Graham, Drip Tip, Inner and Outer Joints Condenser
These PYREX® Graham condensers have a high surface area per unit length of the 300mm long jacket with a 24/40 Standard Taper outer joint at the top and a 24/40 Standard Taper inner joint at the bottom with a drip tip. They are primarily used in vacuum distillations. Condenser tubulations are approximately 10mm O.D.
Specs:
Condenser Style: Graham
Height: 450 mm (approx.)
Length: 300 mm (approx.)
O.D.: 41
Standard Taper Bottom Joint: 24/40
Standard Taper Top Joint: 24/40
Tubulation O.D.: 10 mm (approx.)
Graham, Drip Tip, Inner and Outer Joints Condenser
Item Info:
| Item Title | PYREX® 300mm Graham Condensers w/ Top and Bot 24/4 |
| 0 Stan Taper Joints | |
| Category: | Supplies |
| Sales Unit of Measure | CS6 |
| Last Date/Time Modified | 2/13/2026 11:05:41 AM |
