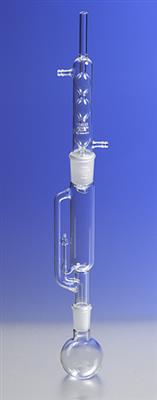

PYREX® 500mL Extractor System w/ Soxhlet Extractor and Allihn Condenser
Item No.
41242970
PYREX® 500 mL Extractor System with Soxhlet Extractor and Allihn Condenser This 500 mL PYREX® extractor system consists of a Soxhlet extractor with 24/40 inner Standard Taper joint on the bottom and a 55/50 outer Standard Taper joint on the top, an Allihn condenser with a 55/50 inner Standard Taper
Description
PYREX® 500 mL Extractor System with Soxhlet Extractor and Allihn Condenser
This 500 mL PYREX® extractor system consists of a Soxhlet extractor with 24/40 inner Standard Taper joint on the bottom and a 55/50 outer Standard Taper joint on the top, an Allihn condenser with a 55/50 inner Standard Taper joint on the bottom and a flask with a 24/40 outer Standard Taper joint. The tubulation O.D. on the condenser is 10mm. For replacement Soxhlet extractors, see No. 3740. For replacement flasks, see No. 4100. For glass extraction thimbles with fritted discs that can be used in these units in place of paper thimbles, see No. 33950.
Specs:
Capacity: 500 mL
Condenser Style: Allihn
Extractor Body Length: 35 mm (approx.)
Flask Style: Boiling
Height: 803 mm (approx.)
No. of Bulbs: 5
Standard Taper Bottom Joint: 24/40
Standard Taper Top Joint: 55/50
Tubulation O.D.: 10 mm (approx.)
Joints, Allihn Condenser Extraction Apparatus,500 ml, Extractors, Condensers, Extractor Systems
This 500 mL PYREX® extractor system consists of a Soxhlet extractor with 24/40 inner Standard Taper joint on the bottom and a 55/50 outer Standard Taper joint on the top, an Allihn condenser with a 55/50 inner Standard Taper joint on the bottom and a flask with a 24/40 outer Standard Taper joint. The tubulation O.D. on the condenser is 10mm. For replacement Soxhlet extractors, see No. 3740. For replacement flasks, see No. 4100. For glass extraction thimbles with fritted discs that can be used in these units in place of paper thimbles, see No. 33950.
Specs:
Capacity: 500 mL
Condenser Style: Allihn
Extractor Body Length: 35 mm (approx.)
Flask Style: Boiling
Height: 803 mm (approx.)
No. of Bulbs: 5
Standard Taper Bottom Joint: 24/40
Standard Taper Top Joint: 55/50
Tubulation O.D.: 10 mm (approx.)
| Accessories | |
|---|---|
| 41242971 | PYREX® Replacement Allihn Condenser for the 500 mL Extractor System |
Joints, Allihn Condenser Extraction Apparatus,500 ml, Extractors, Condensers, Extractor Systems
Item Info:
| Item Title | PYREX® 500mL Extractor System w/ Soxhlet Extractor |
| and Allihn Condenser | |
| Category: | Equipment |
| Sales Unit of Measure | EA1 |
| Last Date/Time Modified | 1/30/2025 4:53:53 PM |
