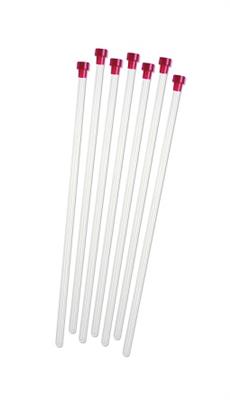

Nmr Tube 8 Inch
Item No.
50046289
NMR HIGH QUALITY TUBES 5mm Our KIMAX®-HQ NMR tubes are our highest quality NMR tubes and are 100% gauged for wall thickness, concentricity and camber specifications. These tubes are ideal for sealing directly to vacuum manifolds, joints or valves. • Attached polyethylene caps • Sandblasted
Description
NMR HIGH QUALITY TUBES 5mm
Our KIMAX®-HQ NMR tubes are our highest quality NMR tubes and are 100% gauged for wall thickness, concentricity and camber specifications. These tubes are ideal for sealing directly to vacuum manifolds, joints or valves.
• Attached polyethylene caps
• Sandblasted marking spot
• OD 4.97 (+0.0000/-0.013) mm
• ID 4.20 (+0.013/-0.0000) mm
• Wall thickness 0.375 mm
• Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Frequency (MHz) : 150
Camber (TIR) (microns) : 28
Concentricity (TIR) (microns) : 51
Length (in) : 8
Case Qty : 5
Item Info:
| Item Title | Nmr Tube 8 Inch |
| Category: | Supplies |
| Sales Unit of Measure | CS5 |
| Last Date/Time Modified | 2/20/2025 2:37:11 PM |
