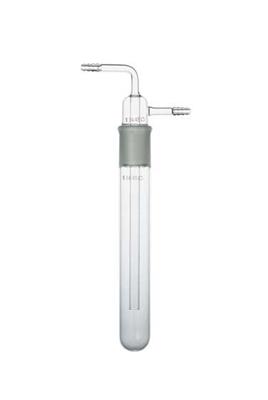

Vacuum Trap Comp Size 22

VACUUM TRAP WITH 180 DEGREE CONNECTIONS
This trap protects the mechanical pump from attack by corrosive vapors which can be condensed by using liquid nitrogen or dry ice/slurry mixtures.


• Outlets are 180° apart for easy installation into a variety of vacuum systems.

• Two-piece construction allows removal of condensate

• Connectors of 926035 series are barbed and fit 1/2” ID flexible tubing

• Connectors of 926300 series are plain

• Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements

Overall Height (mm) : 350
Overall Width (mm) : 130
Standard Taper Joints : 34/45
Inner Tubing OD (mm) : 13
Case Qty : 1
